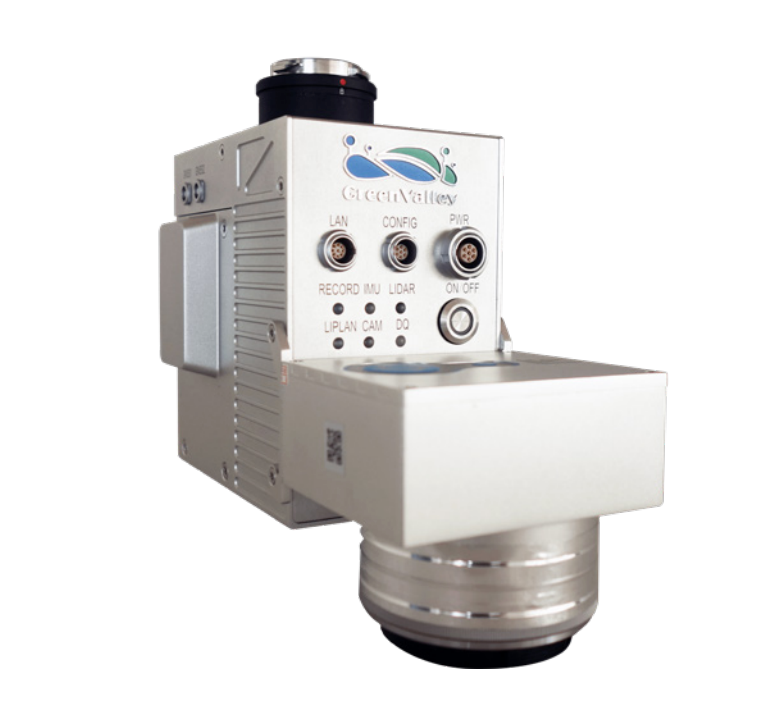

(DEMO PRODUCT) LiAir V70 Drone LiDAR Scanner by Green Valley International

The LiAir V70 by Green Valley International is a lightweight drone-mounted LiDAR survey instrument designed and produced by GreenValley International (GVI). This system features a Livox AVIA laser scanner and it is one of the most cost-effective LiDAR system in GVI’s LiAir Series. This lightweight 3D surveying and mapping payload was designed with DJI’s Matrice 600 Pro & DJI M300 RTK & DJI’s Matrice 210 series platforms. LiAir V70 is able to provide highly accurate 3D point cloud data and is a great fit for applications in a wide variety of industries including forestry. And it also provides an option to be equipped with a high-definition digital camera, which can be used to generate photogrammetry products as well as true color 3D point clouds.


General Specification of LiAir V70 Drone LiDAR Scanner

Laser Sensor: Livox AVIA
Range Accuracy: ± 2 cm
Detection Range (@100 klx):
190 m @ 10% reflectance
450 m @ 80% reflectance
System Accuracy: ± 5 cm



POS System Performance:

Attitude: 0.008° (1σ)
Azimuth: 0.038° (1σ)
Onboard Storage: 128 GB
Mounting Platform:
DJI’s Matrice 600 Pro,M300 RTK & M210
Weight(excl. battery ): 0.9 kg (Excl. Camera) 1.1 kg (Incl. Camera)
Field of View: 70.4° (Horizontal) × 4.5° (Vertical)


Key Features of LiAir V70

Quick Alignment

The dual antenna mode is adopted, short alignment time, high field efficiency

Highly Integrated

Small size, lightweight, easy to carry, support single operation, adapt DJI Skyport

Easy to Operate

One-key control equipment collection, simple operation, quick to get started



Required Software for LiAir V70 Drone LiDAR Scanner

Pre-processing Software

LiGeoreference

Date management, Post-processing and Analyzing Software

LiDAR360
