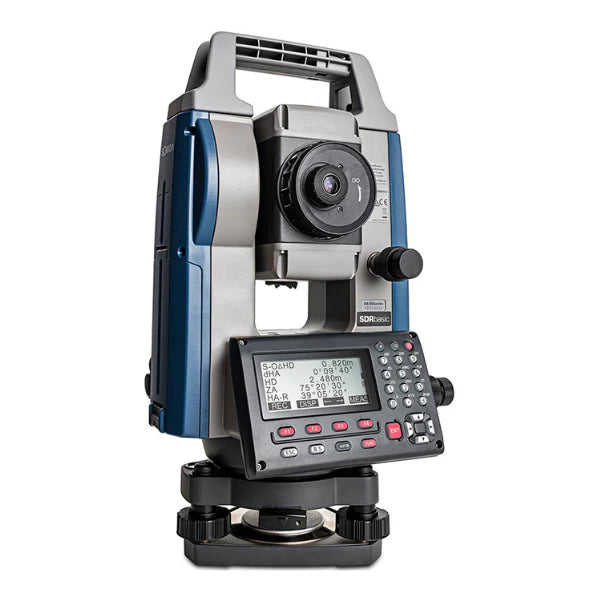

The iM-50, part of Sokkia's Intelligent Measurement total station lineup, is a great option for beginners in site layout and surveying. This model includes Bluetooth capability and an integrated antenna, making data transfer to your controller simple and wireless. With a compact, lightweight design and large storage capacity, the iM-50 provides an enjoyable experience for surveyors. This advanced tool comes equipped with a high-quality EDM, a substantial internal memory of up to 50,000 points, and onboard SDR basic software, providing all the necessary tools for efficient fieldwork.

Key Takeaways

Extended Battery Life: Up to 14 hours in Eco mode, supporting longer workdays without constant recharging.

High-Performance EDM: Offers fast, accurate, and powerful electronic distance measurement.

Impressive Measurement Range: Reflectorless measurements up to 500 meters and a prism range up to 4,000 meters.

Precise Angle Measurement: It comes with advanced angle accuracy options of 2” or 5”.

Durable and Waterproof: It features a rugged design with an IP66 rating, ensuring it's well-protected against dust and water.

Expanded Memory: Can store 50,000 points of internal memory, a significant increase over previous models.

Extended USB Memory: Supports USB memory sticks up to 32GB for even more storage options.

Specifications

USB Memory

• Up to 32 GB

Internal Memory

• 50,000 points

Reflectorless

• Up to 500 m

Prism Range

• Up to 4,000 m

Measuring Time

• Fast measuring time -
  • Fine: 0.9 s (Initial 1.7 s)
  • Rapid: 0.7 s (Initial 1.4 s)
  • Tracking: 0.3 s (Initial 1.4 s)

Battery Life

• Up to 14 hours of battery life in Eco mode
