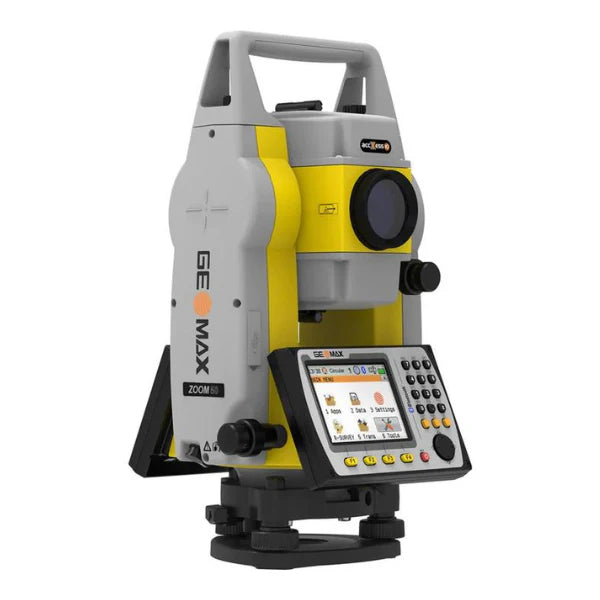

The GeoMax Zoom50 Reflectless Total Station utilizes advanced accXess EDM technology and a smart measurement engine designed for long range, speed, and accuracy. Offering a reflectorless reach of up to 3,280 feet and up to one-second measurement time on selected models, it also features quadruple-axis compensation. With the addition of a single prism, the total station can measure up to 11,483 feet. This model also includes a high-capacity internal memory, Bluetooth Class 1 for easy connectivity, and various communication ports for data sharing and transfer. It has a user-friendly 3.5-inch colored touchscreen and is equipped with Windows Embedded CE OS and GeoMax Pro onboard field software. It includes a removable Li-ion battery for up to 36 hours of power and has impressive durability with dust and water resistance and PowerLock theft protection.

Key Features

High-Performance Measurement Engine: Leverages accXess EDM technology for rapid, accurate distance measurements, optimizing surveying tasks.

Superior Range and Speed: Offers a reflectorless range of up to 3,280 feet and a typical measurement time of just one second, streamlining the data collection process.

Quadruple-Axis Compensation: Provide accurate angle measurements under any conditions, improiving the reliability of surveying results.

Comprehensive Connectivity Options: Features Bluetooth Class 1 for seamless connection with data collectors, alongside RS232 and USB ports for versatile data sharing and transfer.

Extensive Internal Memory: Boasts a high-capacity internal memory capable of storing up to 50,000 data points, ensuring ample space for comprehensive survey projects.

User-Friendly Interface: Equipped with an extra-wide 3.5-inch colored touchscreen and a full alphanumeric keyboard, offering intuitive navigation and data entry.

Windows Embedded CE OS: Runs on Windows Embedded CE OS, coupled with GeoMax Pro onboard field software, facilitating work with a variety of applications tailored for surveyors and construction professionals.

Long Battery Life: Includes a removable Li-ion battery, providing up to 36 hours of continuous operation, and minimizing the need for frequent recharging.

Durable and Secure: The Zoom50 is built to withstand dust and water exposure, ensuring longevity and reliability in harsh conditions. It also features PowerLock theft protection for added security.

Specifications

Angle Measurement

• Accuracy: 1 second, 2 second, 5 second
• Display Method: 0.1” / 0.1 mgon
• Measuring Method/Reading System: Absolute, continuous, diametrical

Applications

• Accident Reconstruction: Yes
• Archaeology: Yes
• Environment Studies: Yes
• Geomarking: Yes
• Mapping and GIS: Yes
• Surveying and Construction: Yes
• Utilities: Yes

Battery/Power

• Battery Life: Up to 36 hours (continuous angle); Up to 16 hours (continuous distance measurement every 30s)
• Power Source: Removable Li-ion

Display and Keypad

• Backlight: Yes
• Keys: Full alphanumeric
• Pixels: 320 x 240
• Sides: Single
• Touchscreen: Yes
• Type: Q-VGA color & touch display

Distance Measurement

• EDM Accuracy (Precision): ±2mm + 2ppm
• Minimum Reading: Up to 1,640 ft. (500 m); 3,280 ft. (1,000 m)
• Unit of Measure (distance display): m/ft

Functions

• Angle and Distance Stake Out: Yes
• Area Calculation: Yes
• Coordinate Measurement Point: Yes
• Missing Line: Yes
• Offsets: Yes
• Real-Time Video Imaging: No
• Remote Elevation: Yes
• Resection: Yes
• Stake Out Line: Yes

General

• Dimensions: 12.4" L x 6.82" W x 8.9" H
• Internal Memory: 50,000 points
• Protection Class: IP55 dustproof and low-pressure water jet resistant
• Software: GeoMax Pro Onboard Field Software
• Tribrach: Yes
• Warranty: 1-year
• Weight: 11.2 lbs (5.1 kg)

Interface

• Bluetooth: Class 1
• Operating System: Windows Embedded CE
• Pin Port: RS-232
• USB: Yes

Laser Plummet

• Accuracy: 1.5 mm at 1.5 m instrument height
• Class: Class 2
• Measurement Range:
  • No Prism: Up to 1,640 ft. (500 m) or 3,280 ft. (1,000 m)
  • Single Prism: Up to 11,482.94 ft. (3,500 m)
• Measurement Time:
  • Fine: 1 sec
  • Rapid: 1 sec
  • Tracking: 1 sec

Temperature

• Operating: -22 to 122 °F (-30 to 50 °C)

Tilt Sensor/Compensator

• Type: Quadruple-axis compensation
