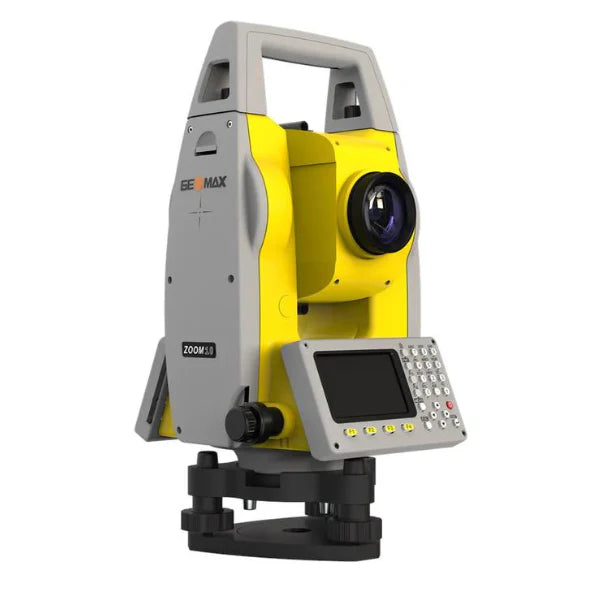

The GeoMax Zoom10 Manual Total Station offers an ideal balance for your entry-level surveying needs. With compatibility for data collection on any Android device through X-PAD software, it reduces the need for additional equipment and streamlines workflow on-site. It offers a dual-axis laser compensation for accurate measurements even in challenging conditions, a 30x magnification scope, and the ability to measure distances up to 350m without a reflector. It has a rugged build that can withstand extreme temperatures and is dust and waterproof, meeting Hexagon's high standards for quality assurance in all GeoMax devices.

Key Features

Android Compatibility: Unique among its peers, the Zoom10 facilitates data collection directly via any Android tablet or phone, negating the need for additional, costly data collection devices.

X-PAD Software Integration: Seamlessly paired with the X-PAD software, the Zoom10 provides importing and exporting data that is both convenient and efficient, enhancing on-site workflow and productivity.

Dual-Axis Laser Compensation: Equipped with dual-axis laser compensation, the Zoom10 provides quick and precise point measurements, even in the most challenging job site conditions.

High Precision Angular Information: Delivers angular information with 2" accuracy, coupled with a 30x magnification scope, offering a broad field of view for comprehensive surveying.

Reflectorless Distance Measurement: Capable of measuring distances up to 350m without a reflector, the Zoom10 extends the range and versatility of surveying tasks it can handle.

Rugged Construction: Designed to withstand the rigors of construction surveying, it operates across temperatures ranging from -20° C to 50° C and boasts an IP54 rating for dust and water resistance.

Hexagon Standard Quality: As part of the GeoMax suite powered by Hexagon, the Zoom10 Manual Total Station is backed by Hexagon's renowned quality assurance, providing reliability and durability in harsh environments.

Specifications

Angle Measurement

• Accuracy: 2" (0.6 mgon)

Battery/Power

• Battery Life: Up to 10 to 16 hours
• Power Source: Removable Li-Ion 3 Ah / 7.4 V

Display and Keypad

• Keys: 2 sides alphanumeric backlit rubber keyboard
• Type: High resolution backlight black and white display with contrast adjustment / Graphics: 280 x 160 pixels / Character: 6 lines x 25 characters

General

• Dimensions: 7.9" L x 6.9" W x 12.4" H
• Internal Memory: 20,000 points
• Protection Class: IP54 dust and waterproof rating
• Software: Dedicated onboard software
• Weight: 11.7 lbs (5.3 kg)

Interface

• Bluetooth: Yes
• Operating System: Dedicated onboard software
• USB: Yes

Laser Plummet

• Accuracy: 1mm at 1.5m instrument height
• Measurement Range (under fair weather conditions):
  • Reflector Sheet: Up to 2624.67 ft. (800 m)
  • Single Prism: Up to 9,842.52 ft. (3,000 m)
  • Triple Prism: Up to 19685.04 ft. (6,000 m)

Temperature

• Operating: -20° C to 50° C
• Storage: -40° C to 70° C

Tilt Sensor/Compensator

• Range: 1"
• Type: Dual-axis
